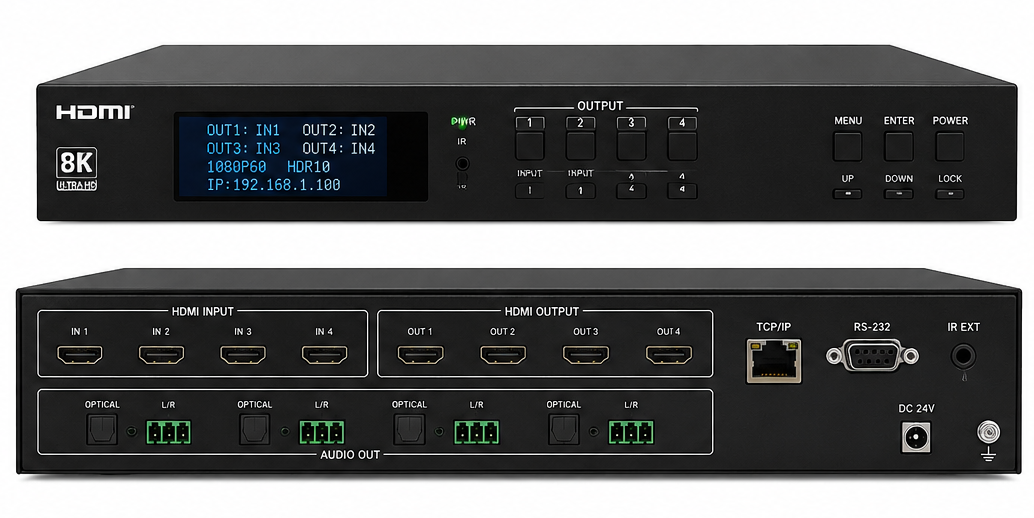

8K HDMI 2.1 4x4 Matrix Switch with Audio Extraction

Route four HDMI sources to four HDMI displays with professional-level control. This 48Gbps HDMI 2.1 4x4 matrix switch is designed for advanced home theater, gaming rooms, conference rooms, classrooms, studios, control rooms, and custom AV installations.

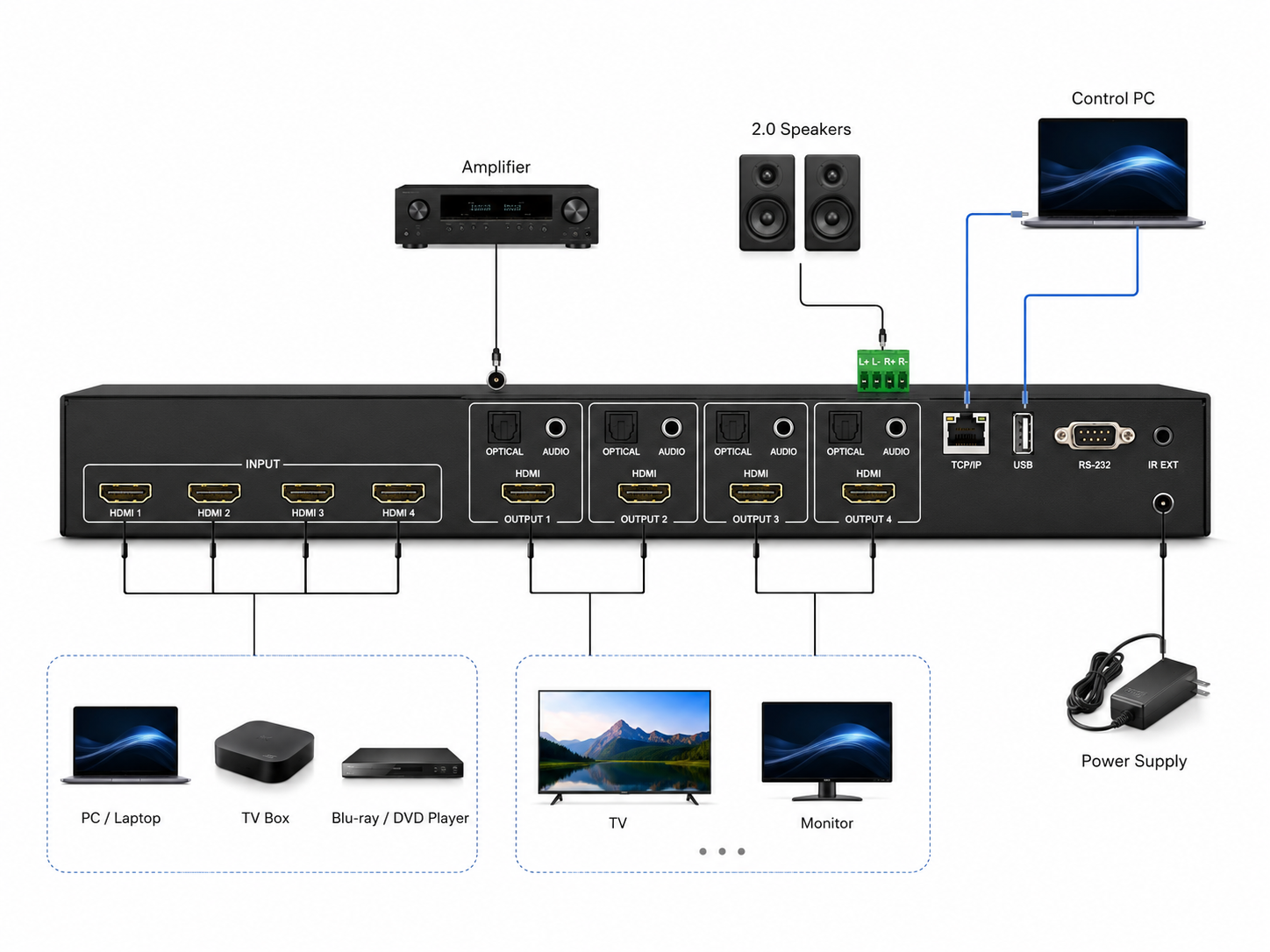

Connect up to four HDMI source devices — such as gaming consoles, media players, computers, Blu-ray players, or set-top boxes — and independently send each source to any of the four HDMI displays.

This unit supports high-resolution video up to 8K60Hz, 8K30Hz 4:4:4, and 4K120Hz 4:4:4, with support for HDR, HDR10, HDR10+, Dolby Vision, and HLG. It also supports modern audio formats including Dolby Atmos, Dolby TrueHD, DTS-HD Master Audio, and more through HDMI passthrough.

The matrix includes audio extraction through optical and balanced analog audio outputs, giving installers more flexibility when connecting amplifiers, speakers, processors, or separate audio systems. It also supports advanced EDID management, resolution downscaling, HDR conversion, ARC, Web GUI control, RS-232, TCP/IP, IR remote, and front panel control.

Key Features

• 4 HDMI inputs to 4 HDMI outputs
• HDMI 2.1 / HDCP 2.3 compliant
• 48Gbps video bandwidth
• Supports up to 8K60Hz, 8K30Hz 4:4:4, and 4K120Hz 4:4:4
• HDR, HDR10, HDR10+, Dolby Vision, and HLG support
• Dolby Atmos, Dolby TrueHD, DTS-HD Master Audio passthrough
• Optical and balanced analog audio extraction
• Independent routing from any input to any output
• Resolution downscaling and HDR conversion per output
• Advanced EDID management
• Control by Web GUI, RS-232, TCP/IP, IR remote, and front panel buttons
• Metal enclosure for professional AV installations

Special Order Note

This item is available by special order through Pacroban.

Estimated delivery is usually 2–4 weeks, but it is not guaranteed. Delivery may vary depending on production availability, freight, customs clearance, and final shipping method.

If there is any issue fulfilling the order, Pacroban will contact you with the available options.

Download

Download the User Manual here.
